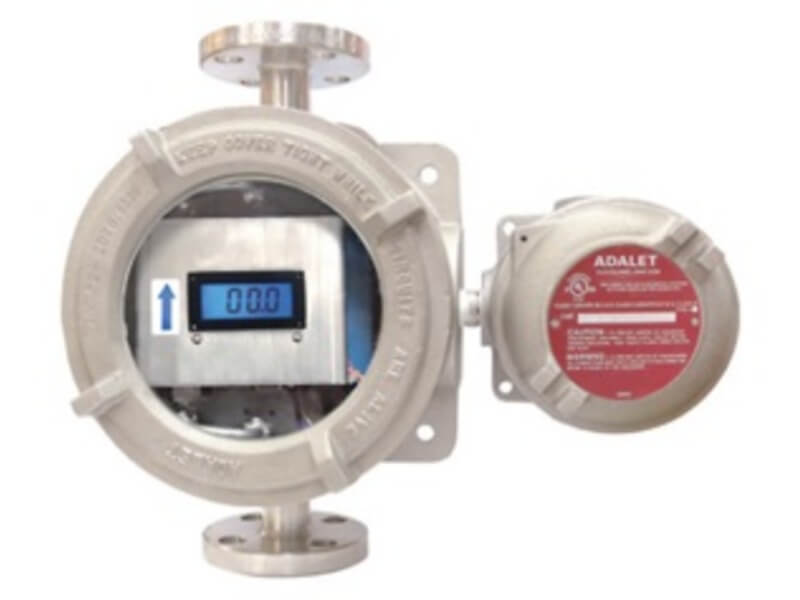

熱質式流量計
規格說明
|
Name |
Thermal Mass Flow Meter |
|
Fluids |
Non-corrosive Gas |
|
Display |
LCD display with blue backlight |
|
Flow Range |
0~10 SCCM to 0~100 SLM |
|
Process Connection |
1”NPT female / Flange |
|
Output Signal |
0~5V / 4~20mA |
|
Load Resistance |
0~5V - 1000Ω 4~20mA - 500Ω |
|
Material |
Wetted Part - SS316 O-ring - Viton |
|
Accuracy |
±2%FS |
|
Repeatability |
±0.15%FS or better |
|
Turndown Ratio |
100:1 |
|
Input Power |
24VDC / 15VDC / 115VAC / 220VAC |
|
Electric Connection |
9 Pin Sub D |
|
Minimum Pressure |
100”H2O |
|
Maximum Pressure |
500 PSIG |
|
Temperature Range |
0~50℃ |
|
Response Time |
1 second |
|
Temp. Coefficient |
0.05%FS per 1℃ or better |
|
Pressure Coefficient |
0.01%FS per PSIG or better |
|
Certification |
CE |
|
Explosion Proof |
Class I, Groups B, C & D Class II, Groups E, F & G; NEMA 4, 7, 9 ATEX II 2G Ex d IIB + H2 Gb ATEX II 2G Ex tb IIIC Db IP66 |
|
Weight |
App. 6.5kg with power supply |
